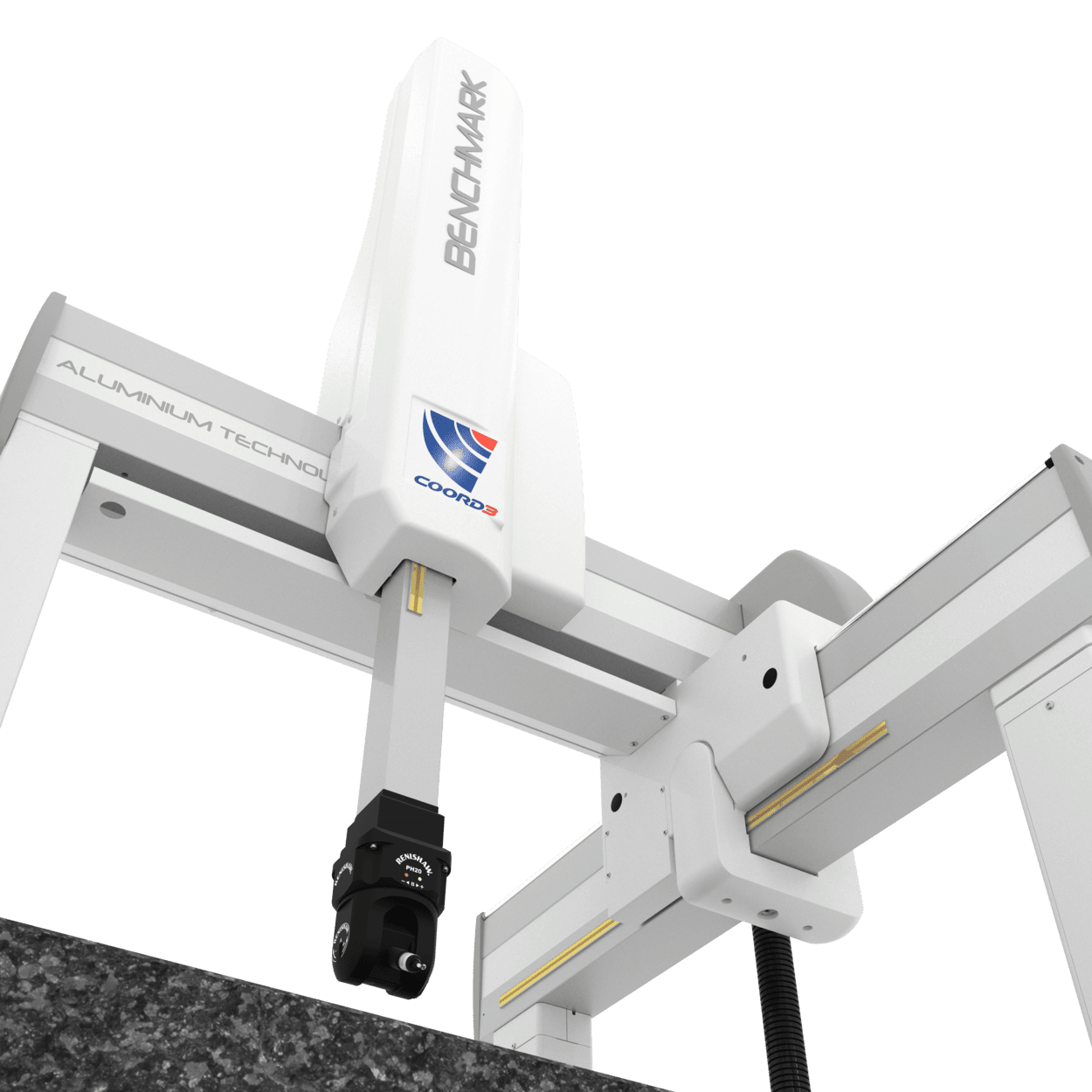

THE BENCHMARK’S OPEN DESIGN PROVIDES EXCELLENT ERGONOMICS. ITS COMPACT SIZE FITS INTO QUALITY CONTROL ROOMS OR PRODUCTION ENVIRONMENTS.
The complete BENCHMARK with air bearings provides an accuracy of 2.5 microns. It comes standard with a Renishaw touch probe, and can be supplied with a motorized probe head for fully automated inspection applications.
The BENCHMARK is the ideal CMM for small workshops.
The BENCHMARK is available in either manual or CNC configurations. Manual machines can be upgraded to the full CNC version later on site, offering the possibility of a two-step investment.
Advanced ultra-rigid alloy platform
Rapid thermal diffusion through the frame when the temperature changes
FEA design ensures optimal moment of inertia and stiffness, enabling strong acceleration
Base composed of a single piece of granite with M8 threaded top inserts in a large checkerboard design
Rigid air bearings
Z-axis pneumatic counterbalance
Measuring scales with 0.1 micron resolution with dynamic signal processing
Fully digital motion control with probe path fusion for optimal CMM performance
Friction reducers with near-zero hysteresis on all axes
Passive vibration damping system that isolates from external vibrations
Free access to the measurement areaof the CMM
Maximum positioning speed: 500 mm/sec
Maximum acceleration: 1500 mm/sec2
Temperature rating: 20 °C
Allowable temperature range: 18 – 22 °C (extended range 16 – 26 °C)
Temperature gradient: 0.5 °C/hour – 2 °C/day (extended range 5 °C/day)
Operating temperature range: 15 – 35 °C
Relative humidity: 40 – 80% (no condensation)
Acceptable vibrations: 30 mm/ sec2 1-10 Hz | 15mm/ sec2 10-20 Hz | 50 mm/ sec2 20-100 Hz
Minimum air supply: 5 bar (72 PSI)
Air consumption: 90 NL/min (3 cfm)
Supply voltage: 230 V 50 Hz or 110 V 60 Hz
Maximum power consumption: 10 A, 1200 W
CMM’s optional Touch Station for superior user ergonomics
Wireless dynamic thermal compensation of the machine and components
Pneumatic vibration isolation system
Air dryer
Fixing kit for modular parts
Modular compartment of the CMM
Kit for upgrade from manual Benchmark to CNC
Models and dimensions
COORD3 BENCHMARK CMMs are available with the following measuring strokes (X.Y.Z mm): 6.5.5
From consulting to support, COORD3 offers tailored services to ensure consistent performance and ongoing support over time.
