cmm BRIDGE | benchmark

Budget priced yet high-performance cmm for high-precision inspection of small – and medium – sized parts.

CMM bridge | benchmark

The open structure of the BENCHMARK solution offers an outstanding ergonomic design. Thanks to its compact size, it is perfect for quality control rooms or production environments.

The fully equipped BENCHMARK solution with air bearings ensures an accuracy of 2.5 microns. The standard version is equipped with a Renishaw touch-probe and can be supplied with a motorized probe head for fully automated inspection applications.

The BENCHMARK CMM is particularly suitable for small workshops.

CMM benchmark

General features
The BENCHMARK solution is available in manual or CNC configuration. Manual units can be later upgraded on site to the full CNC version, which offers the opportunity to consider a two-phase investment.
Features and benefits
  • Ultra-rigid platform in advanced alloy
  • Rapid thermal diffusion  through advanced alloy CMM frame when temperatures change
  • FEA design provides optimum moment of inertia and stiffness, allowing high accelerations
  •  One-piece granite  base plate with M8 threaded table inserts with wide grid pattern
  • Rigid air bearings
  • Pneumatic Z-axis counterbalance
  •  0.1-micron resolution measuring scales with dynamic signal processing
  • Fully digital motion control with probe path blending for optimized CMM performance
  • Zero hysteresis friction drives to all axes
  • Passive vibration damping system to isolate external vibrations
  • Free access to the CMM measuring area
  • Maximum positioning speed: 500 mm/sec
  • Maximum acceleration: 1500 mm/sec2
  • Nominal temperature: 20 °C
  • Metrological temperature range: metrologica: 18 – 22 °C
  • Temperature gradient: 0,5 °C/hour – 2 °C/day
  • Operating temperature range: 15 – 35°C
  • Relative humidity: 40 – 80%  (non-condensing)
  • Acceptable vibrations: 30 mm/sec2 1-10 Hz | 15mm/sec2 10-20 Hz | 50 mm/ sec2 20-100 Hz
  • Minimum air supply: 5 bar
  • Air consumption: 90 Nl/min (3 cfm)
  • Power supply voltage:  230 V 50 Hz o 110 V 60 Hz
  • Maximum power consumption: 10 A, 1200 W

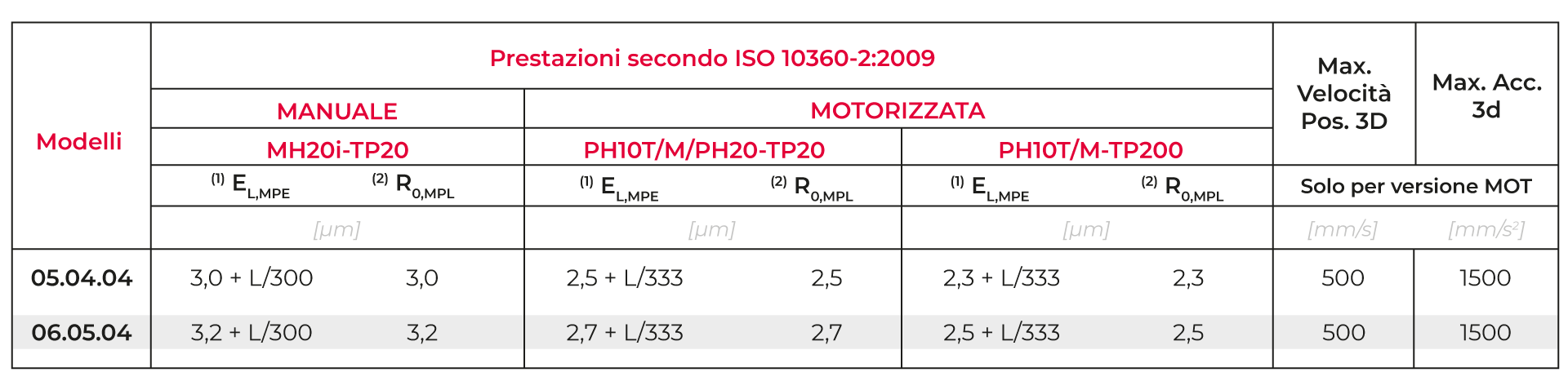

Performance data

All COORD3 CMM products are factory-tested for accuracy according to the UNI EN ISO 10360 – 2 standard

Performance data are only valid if the following specifications are met:
– PH10T/M/PH20-TP20/TP200: SF Module, Tip diameter Ø 4 mm x Stylus length 10 mm
– L = measuring length in mm
– Ambient temperature Range:
T: 18 ÷ 22 °C; Max. Gradients 0,5 °K/h – 2,0 °K/24h – 0,5 °K/m

[1] Maximum permissible Error for size measurements according ISO 10360 2:2009
[2] Maximum limit for repeatability range according ISO 10360 2:2009

  • Optional CMM touch station for enhanced ergonomics
  • Dynamic wireless thermal compensation of machine and part
  • Pneumatic vibration isolation system
  • Air dryer
  • Modular part fixture kits
  • CMM modular enclosure
  • Manual Benchmark CNC upgrade kit
  • Models and sizes
    COORD3 BENCHMARK CMMs are available with the following measuring strokes (X.Y.Z mm):
